RUIJIE

Technical Specifications Ports : 8 10/100/1000Mbps RJ45 ports Maximum port forwarding rate : 1000Mbps Auto-MDI/MDIX : Support MAC address : 8K Backplane bandwidth : 16Gbps Maximum packet forwarding rate : 11.9Mpps LED indicator : Link/Act status LED indicator for each port, Power indicator Dimensions : 160mm x 75mm x 24mm Power input / output : External 5VDC 1.0A Maximum power consumption : ≤5W Temperature Operating temperature : 0 ℃ ~ 40 ℃, Storage temperature : -40 ℃ ~ 70 ℃ Humidity Operating humidity : 10% ~ 90% non-condensing, Storage humidity : 5% ~ 90% non-condensing

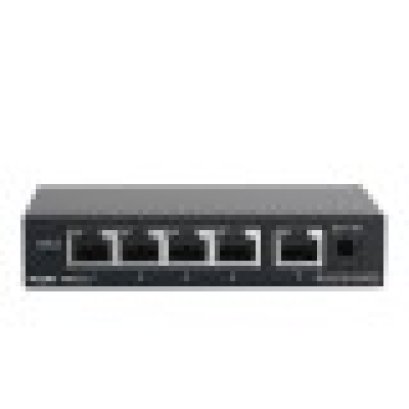

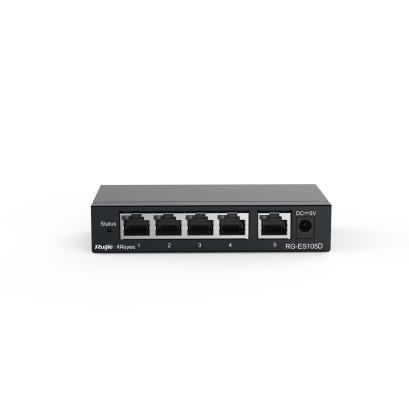

5-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports ,Steel Case 5 10/100/1000M RJ45 ports, metal casing, external 5VDC 1.0A power adapter Features – Plug and Play: RG-ES100 Series supports self-adaptive ports and plug-and-play feature with zero configuration. – Metal Casing: The entire casing is made of metal which provides better heat dissipation. – Easy to Install: The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space. – Enterprise-grade Quality: The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission

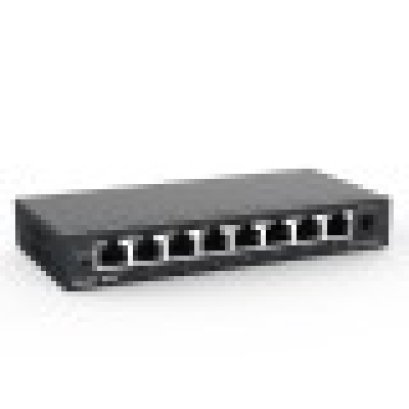

8-Port unmanaged Switch, 8 10/100base-t Ethernet RJ45 Ports , Steel Case 8 10/100M RJ45 ports, metal casing, external 5VDC 1.0A power adapter Features – Plug and Play: RG-ES100 Series supports self-adaptive ports and plug-and-play feature with zero configuration. – Metal Casing: The entire casing is made of metal which provides better heat dissipation. – Easy to Install: The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space. – Enterprise-grade Quality: The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.

Technical Specifications Ports : 5 10/100Mbps RJ45 ports Maximum port forwarding rate : 100Mbps Auto-MDI/MDIX : Support MAC address : 1K Backplane bandwidth : 1Gbps Maximum packet forwarding rate : 744Kpps LED indicator : Link/Act status LED indicator for each port, Power indicator Dimensions : 119mm x 62mm x 24mm Power input / output : External 5VDC 1.0A Maximum power consumption : ≤5W Temperature Operating temperature : 0 ℃ ~ 40 ℃, Storage temperature : -40 ℃ ~ 70 ℃ Humidity Operating humidity : 10% ~ 90% non-condensing, Storage humidity : 5% ~ 90% non-condensing

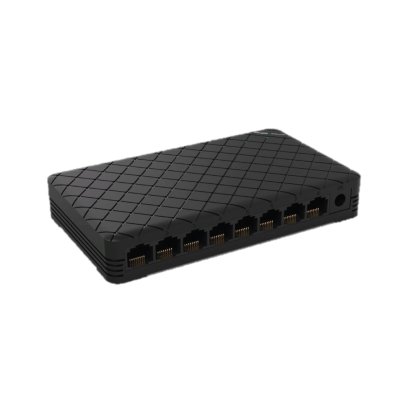

8-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports , Plastic Case Ruijie Reyee Series Plastic Switch is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO, which consists a total of 4 different models to meet the network needs of small enterprise customers. The switches feature plug and play, zero confguration and compatibility with a variety of terminals such as network cameras, printers, PCs, etc., to offer fast deployment experience.
